Kormee NΑNODRILL 3004 met MIPO1005 10240294 pakket2
Description

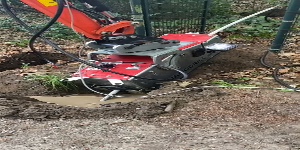

Unique in the Netherlands, the Nanodrill 3004 is the ultra-compact controlled drilling solution at nano level. Can be applied to the mini digger and easy to transport with a van or trailer. The Nanodrill is the little brother of the Microdrill. With this installation a mini digger (from 1.5 tons) can also perform directional drilling. Now even more compact and easier to transport. The entry angle is adjustable with a hole pattern and is rotatable on the excavator's quick coupler. The drill rods are very flexible so that can be drilled with a bending radius of 2 meters. The Nanodrill is a valuable addition for the installation of cables and pipes. House connections or passages of streets and entrances are drilled in no time. The Nanodrill makes a directional drilling so that it works much more accurately than a rocket drills. As a result, the chance of damage from the bore is very small. By equipping a cable crew with a Nanodrill, work is done more efficiently. Obstacles can be overcome with a directional drilling are avoided so that there is no stagnation of the work. In addition, there is no expensive drilling needed of a large drilling rig. By avoiding rocket drills, the chance of damage is very small. Optional: * Radio remote control * Delivery including bentonite mix pump installation.
Specifications
| Manufacturer | Kormee |
| Model | NΑNODRILL 3004 met MIPO1005 pakket2 10240294 |
| Year | 2025 |
| Stock Number | 100720 |
| Dimensions | 0.3 x 1.3 x 0.5 meters |
| Weight | 275 kgs |
| Bending radius drill rod | 2 meters |
| Hydraulic power | 30 l/min |
| Power | 12 kW |
| Max. couple | 300 Nm |
| Push and pull force | 400 kg |
| Max. rpm | 200 rpm |
| Max. length | 30 meters |
| Max. diameter | 90 mm |
